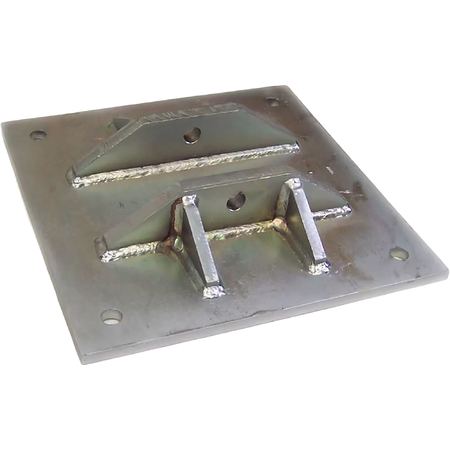

DuraHoist Bolt-On Anchor Plate (DH-AP-12)
- ★
- ★
- ★
- ★
- ★
Need a quote or PO?
Talk to our team for a quote or purchase order based on your needs.
Save up to 5% as a Mitti member, automatically at checkout
Create a free Mitti account or log in to unlock your discount.
T&Cs apply
Delivery info
Inventory by Location
Available on order with 10–16 business day delivery
The Bolt on Anchor Plate is designed to be permanently bolted to concrete or other structures in locations of frequent work, or where use of a portable base is impractical. It permanently addresses your fall-arrest anchor point requirements.
Materials
General Construction: Welded Steel
Weld Certification: AWS-47.1
Material: HR Plate and Bar
Finish: CS-500 Zinc plated
Technical
Proof Load 190,000 in-lbs (20.8 kN-m)
Weight 43lbs (19.5kg)
The plate is designed to support the loads required by
all portable fall-arrest masts and accessories, when
installed and used in accordance with the
manufacturers instructions.
Mounting Requirements
DH-AP-12/ Bolt on Anchor Plate:
Moment Requirement: 190,000in-lbs (20.8 kN-m)
Vertical Load
Requirement: 3100 lbs (13.8 kN)
Application Restrictions
1. Ratings, capacities and design factor may vary with system components and configurations. Consult specification sheets for all system components to ensure compliance with requirements.
2. Mounting surface must be within 15° of horizontal and plate must be installed so that the portable fall-arrest mast can be leveled for use.
3. Each installation must be approved to local standards by a qualified engineer.
Brand
HoneyWell
Custom Variant
PIP-DH-AP-12
GTIN
612230084196
MPN
DH-AP-12
Unit of Measure
Each
