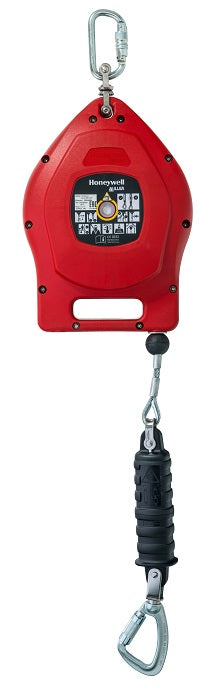

Honeywell Miller Falcon Edge Self-Retracting Lifeline

The new Miller Falcon Edge is an edge-tested automatic SRL that is suitable for all work situations, including those requiring low-angle anchoring when working on edges for versatility, reliability and maximum safety.

Advantages:

A product that suits all work situations

• Product tested on edges with an angle radius ≥ 0.5mm thanks to its angle-resistant energy absorption system according to the latest normative requirements.
• Tested at 136 kg in all situations in height: horizontally, vertically, with fixation at the feet and near edges

Comfort and freedom of movement

• 2 swivels (on the carabiner at the end of the cable and on the housing) prevent the cable from twisting and improve the retraction of the cable.

Better security

• Easy visual inspection thanks to integrated fall arrest indicator.
• Energy absorption system protection, UV and moisture resistant (IP67 sealing)

Reliability

• Durable design with components resistant to corrosion.
• Extended life duration.

Protects in all work situations (vertical and horizontal applications)

• Certified to EN360 Type B, VG11 (Rev 08) edgetested, compliant with datasheet CNB/P/11.060.
• 4.2 Test mass and sample lengths: 1- The test mass (steel weight as in EN 364: 1992) shall correspond to the nominal weight, but shall at least be 100 kg. Note: the nominal mass shall be the same as for vertical use (according to EN 360:2002)
• 4.4 Dynamic performance: The test shall be performed on the lanyard itself. If a testing component (like mass, load cell, test connector), a cover (thimble, rubber cover) or an integral connector would hit the edge, the test shall be performed again by increasing the previous offset distance such as these components would not strike the edge.

The Versatility You Need.

The Safety You Depend On. Designed for performance in edge applications, Falcon Edge SRLs offer versatility, reliability, and maximum safety.

Safe

• Designed for edge applications with an edge radius of ≥ 0,5 mm • Provides protection in applications that require anchoring at foot level • Meets the most stringent safety standards, including EN360 Type B, VG11 (Rev 08)

Versatile

• Perfectly suits your personal profile, with the capacity to support user weights up to 136 kg. in all connections at foot level and above
• Provides protection for all working at height situations – horizontal, vertical, mounted overhead, anchored at foot level and work near edges
• Available in 6,2m, 9m, 15m & 18m working lengths to cover a wide range of applications

Reliable

• Durable design with corrosion resistant internal components extend service life and lowers cost of ownership
• Repairable with quick turnaround time, lowers cost of ownership and increases productivity

Inspection and repair maintenance

In compliance with the European legislation for the class 3 PPE, the Falcon range must be yearly inspected according to the procedure described in the checklist delivered with the device.

Periodic inspection

During the periodic inspection, there is no obligation to open the control pad. However, we recommend that the mechanism be checked by a technician trained by the manufacturer (see the maintenance and repair manual) at intervals determined by the type of use.

Honeywell has your back with a full range of leading edge self-retracting lifelines and personal fall limiters, including the Miller® TurboLite™ Edge Series.
