Miller Durahoist Adjustable Offset Upper Mast LARGE (0.76M - 1.21M)

Description

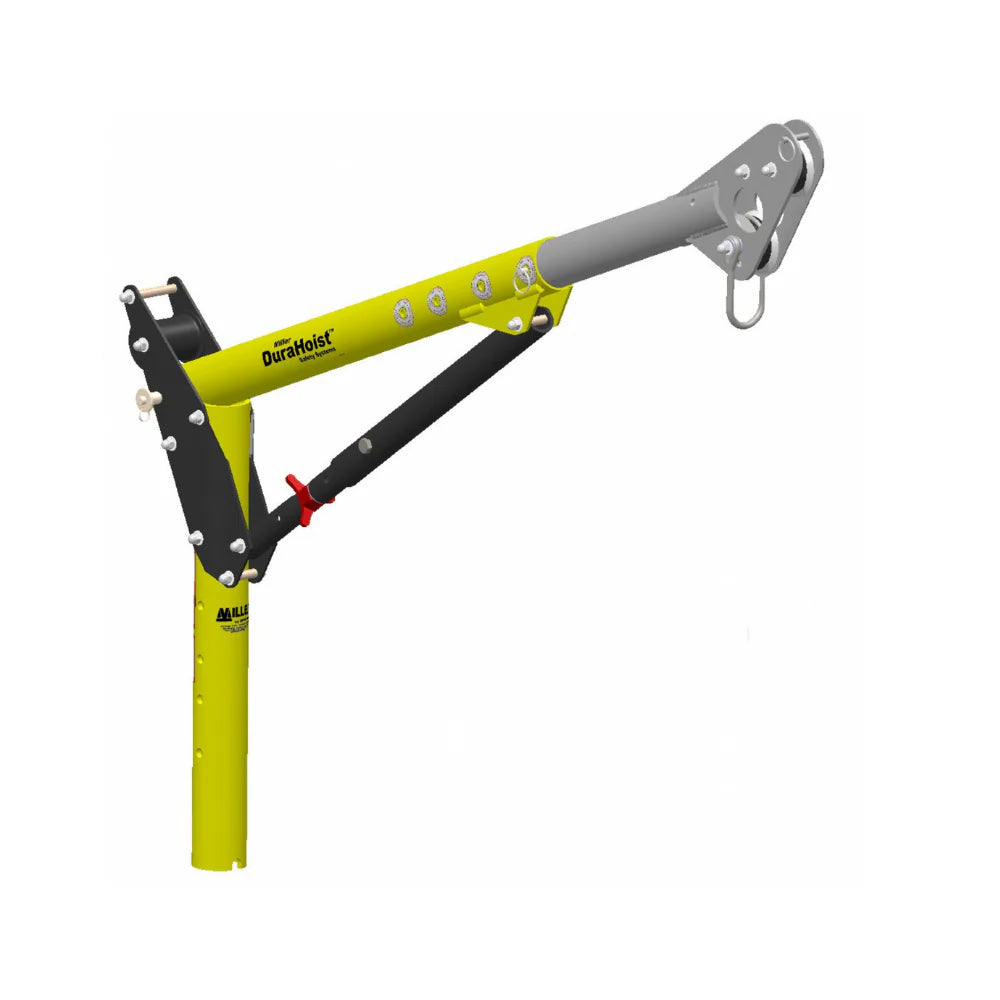

Miller DuraHoist Davit Arm 30''-48'' Adjustable Offset Upper Mast

Features

• Combines Lower Mast Extensions with the One-Piece Adjustable Mast or the Two-Piece Upper Mast
• Eliminates the need for custom-length masts
• The Upper Mast provides additional solutions for height-restrictive applications

Materials

General Construction: Welded Aluminum
Weld Certification: AWS
Hardware: Gr.5, Zinc Plated
Material Structure: 6061-T6, 5052-H32,
7075-T6 Aluminum, Black Acetal, White UHMW Polyethylene
Block Anchor: 304 Stainless Steel
Finish: Safety Yellow Powder Coat
Technical
Rated Capacity: 450 lbs (204kg)
Working load limit @ minimum 4:1 Design Factor
Proof Load Ratings
Anchor Points
A) Standard
Pin Position 1,2,3 and 4 1,800lb (8kN)
Weight 29 lbs (13.2 kg)

The adjustable arm are designed for use where multiple offset masts. (mast sold seperatley. These masts are compatible with UCL, Capital Safety, Pelsue, Durahoist and Miller Safety Systems.

The Variable Offset Masts may be equiped with front mounted and/or back mounted winches or SRL's and feature a 5000lb. (2272kg) capacity anchor point for fall-arrest anchorage.

For applications with overhead clearance restrictions, the adjustable height of the Variable Offset Masts can eliminate the need for custom length masts and mast extensions. The addition of the quick-release pin allows for easy collapsibility and transport.

Rated at 8kN Maximum extention

Maximum extention 48inchs
